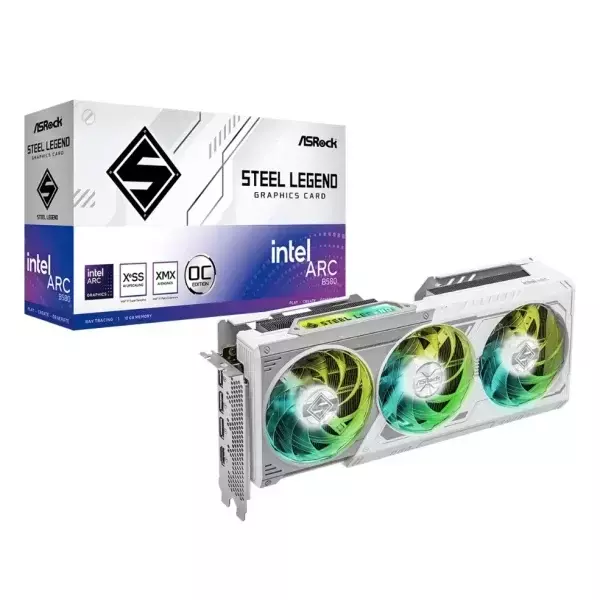

Intel Arc B580 Steel Legend 12GB OC
B580 SL 12GO
Clock: GPU / Memory
GPU Clock: 2800 MHz
Memory Clock: 19 Gbps
Key Specification
Intel® Arc™ B580 Graphics
12GB 192-bit GDDR6
Intel® Xe2-HPG Architecture
Intel® Xe Super Sampling 2 (Intel® XeSS 2)
Intel® Xe Matrix eXtentions (Intel® XMX)
Microsoft® DirectX® 12 Ultimate
2x 8-pin Power Connectors
3x DisplayPort™ 2.1, 1x HDMI™ 2.1a
Key Features
Polychrome SYNC
Triple Fan Design
Striped Ring Fan
Stylish Metal Backplate
Ultra-fit Heatpipe
Air Deflecting Fin
0dB Silent Cooling
Super Alloy Graphics Card
Graphics Engine: Intel® Arc™ B580 Graphics
Bus Standard: PCI® Express4.0 x8
DirectX: 12 Ultimate
OpenGL: 4.6
Memória: 12GB GDDR6
Engine Clock: 2800 MHz
Intel® XMX Engines: 160
Memory Clock: 19 Gbps
Memory Interface: 192 Bits
Resolution: Digital Max Resolution: 7680 x 4320
Portas de video: 1 x DisplayPort 2.1 (Primary, up to UHBR13.5); 2 x DisplayPort 2.1 (Up to UHBR10); 1 x HDMI 2.1a
HDCP: YES
Multi-view: Até 4 telas
Recommended PSU: 650W
Power Connector: 2x 8-pin
Dimensions: 298 x 131 x 51 mm, 2.6-slot
Peso Liquido: 959 g
